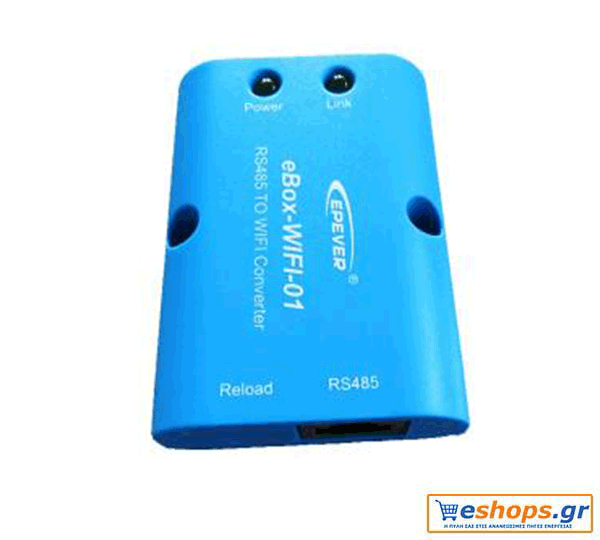

WiFi eBOX-01 ΣΕΙΡΙΑΚΟΣ SERVER ΓΙΑ EPSOLAR ΡΥΘΜΙΣΤΕΣ

12/24/48 V  / 80Α Multi-Functional Switching Module with either Overcharge Protection

or Low Voltage Disconnect for Stand-Alone Systems.

090804

Subject to change without notice ystem Management

Nominal Voltage

Load Current Max.

Self Power Consumption

Ambient Temp. Range

Dimensions

Weight

Type of ProtectionTechnical Data MPS80

12/24/48 V

80 A

<10 mA

-25 to +50 °C

108x150x112 mm

1100 g

IP22

108

150

112

WIND

Power Switch Functions

MPS is Phocos’ innovative new multi-functional power switching module for standalone

power supplies. It can be configured to operate as a charge controller, load

controller or diversion controller by simple toggling of DIP switch settings.

Low Voltage Disconnect and Overcharge Protection

MPS offers integrated, adjustable low voltage disconnect as a load controller and

sophisticated overcharge protection as a solar charge controller.

Flexible Grounding

The new flexible power electronics allow for positive or negative grounding.

Parallel Operation of Multiple MPS Units

Multiple MPS units can be operated together with the help of Phocos’ MCU modular

central unit. This allows to charge the same battery bank at an aggregate charge

current of up to 640 A and can control up to 200 A single load current.

Modular Charge Controller Applications

MPS units can be operated together with MPPT units with the help of Phocos’ MCU

modular control unit.

Τιμή χωρίς ΦΠΑ
